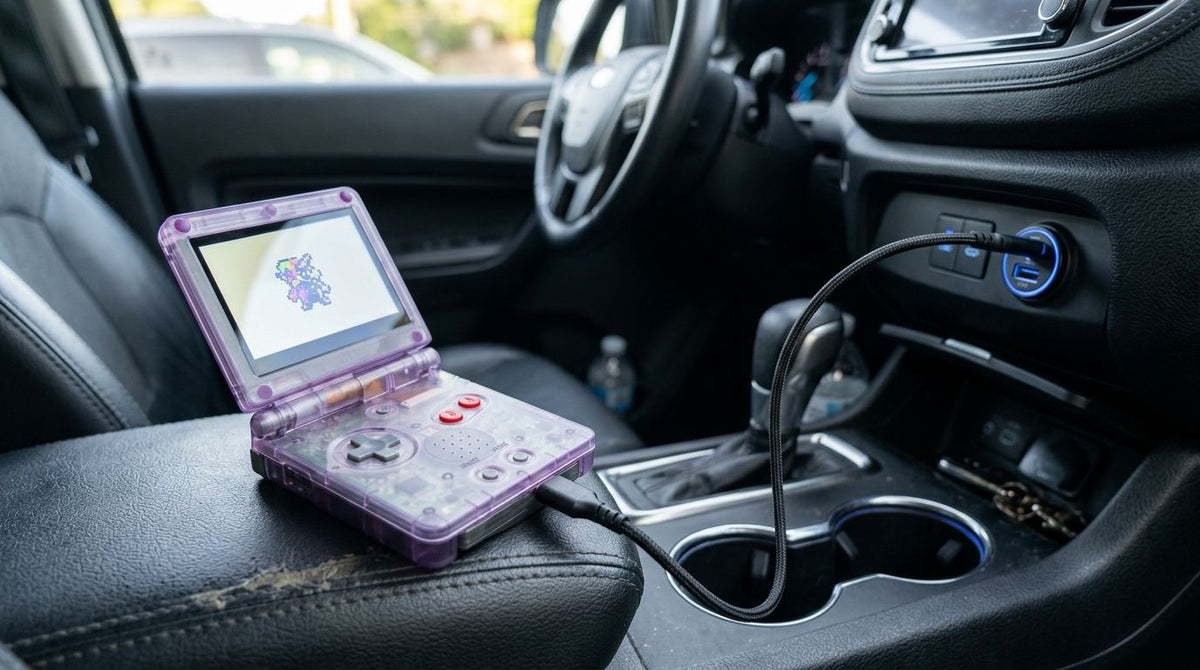

Charge GBA SP With Car Charger: 2026 USB-C Setup Guide

Plugging a modded Game Boy Advance SP into a car's USB-C port should just work, but three things trip people up every time: PD-only ports that never drop to plain 5V, ignition-linked sockets that cut power the second the car switches off, and charge-only cables that carry no current at all. Set the port and cable right once, and the console tops up on every drive without you thinking about it again.

Why this matters

Original Game Boy Advance SP units from 2003 charged from a proprietary barrel connector and a NiMH pack that's long past its useful life in most units still floating around Australia. A USB-C charging mod replaces that with a standard port and a fresh Li-ion cell, which means the console can now pull power from almost anything with a USB-C output, including your car.

The catch is that "USB-C" doesn't mean one voltage. Car head units, 12V-to-USB-C adapters, and factory USB-C ports in 2026-model vehicles all behave differently, and a mismatch between the console's charging circuit and the port's power profile is the single most common reason someone plugs in and gets nothing.

Before you start

• Confirm the console has a USB-C charging mod. Not every refurbished GBA SP does — check the listing or ask before assuming the port on your unit accepts power.
• Use a cable rated for charging, not just data. Cheap USB-C cables bundled with cheap car chargers sometimes only carry data lines; if the console shows no charge LED at all, the cable is the first suspect.
• The gotcha: USB-PD-only car ports can refuse to charge the console. Some newer car USB-C ports negotiate USB Power Delivery exclusively and won't fall back to a simple 5V/1A-2.5A profile that the GBA SP's small charging board expects. If the port has a PD logo or is rated for laptop charging, test it before relying on it for a road trip.

Set up your car charging source

1. Locate every USB-C port in the vehicle — factory-fitted ports (common on 2022+ model years), aftermarket 12V-socket adapters, and any powered docking stations.
2. Check whether the port is ignition-linked or always-on. Look in the owner's manual under "accessory power" or test it directly: turn the car off and see if a phone plugged into that port keeps charging.
3. If using a 12V cigarette-lighter adapter, buy one rated for at least 5V/2A output on at least one port — most dual-port 12V adapters list this on the packaging or casing.
4. Plug in a USB-C to USB-C cable rated for power delivery of charging (not a display-only or data-only cable) between the port and the console.

Expected result: the GBA SP's charge LED lights up within a few seconds of connecting. If it doesn't, move to Troubleshooting below before assuming the console is faulty.

Configure the charge for daily driving

1. Plug the console in before you start the car, not after — this avoids a voltage spike during ignition on some older vehicles.
2. Leave the console powered off while charging in the car if you want the fastest top-up; playing while charging draws current away from the battery and slows the charge.
3. For short trips under 30 minutes, treat the car charge as a top-up rather than a full charge cycle — a modded GBA SP's Li-ion cell typically needs longer than a school run to go from empty to full.
4. Unplug the console when you park if the port is ignition-linked, since the connection will simply go dead anyway and there's no benefit to leaving it plugged in.

Expected result: after a 20-30 minute drive, the console shows a meaningfully higher battery percentage (or LED state) than when you started, without the console feeling warm to the touch.

Variant: charging from a 12V socket adapter instead of a factory port

Older vehicles and budget trims often lack a native USB-C port. The workaround is a 12V-to-USB-C car adapter, which is the more common setup for anyone driving a car from before 2020.

1. Choose an adapter that explicitly lists USB-C output (not just USB-A with a bundled cable) — this matters because USB-A-to-USB-C cables sometimes cap current lower than a native USB-C-to-USB-C connection.
2. Insert the adapter into the 12V socket and confirm its indicator light comes on — most units show a small LED to confirm the socket itself is providing power.
3. Connect the console using the same power-rated USB-C cable from the main setup above.
4. Test with the engine running first. Some 12V sockets only activate with the key in the accessory or ignition position, not simply with the door unlocked.

This variant behaves identically to a factory port once power is confirmed — the console doesn't know or care whether the 5V is coming from a built-in USB-C jack or a 12V adapter downstream.

Troubleshooting

• Charge LED doesn't light up at all. Swap the cable first — a large share of "dead port" complaints trace back to a data-only cable. If a known-good cable still shows nothing, the port itself may be PD-only.
• Console charges but only when off. This is normal behavior on some USB-C mod boards; the charging circuit prioritizes battery current over powering the console when input current is limited, which is common on lower-output car adapters.
• Charging is very slow (multiple hours for a partial top-up). The port is likely supplying 5V at a low current ceiling — common on older 12V adapters. Switch to a dedicated USB-C car charger rated for at least 2A if this happens on every drive.
• Console feels warm during charging. Unplug it. Cabin temperatures above roughly 35C combined with direct sunlight on the console are a bad combination for any Li-ion cell, modded or otherwise.
• Charging stops the moment the car turns off. The port is ignition-linked, not a fault. Move to an always-on port or a standalone power bank for parked charging.

Customize your charging setup

Once the basic car charging routine is solid, a few upgrades make it more reliable for regular travel:

• Carry a short USB-C to USB-C cable dedicated to the car so you're not hunting for one that actually delivers power.
• Pair the console with a travel case built for GBA SP storage so it isn't rattling around loose near a hot dashboard while charging.
• If the console won't hold charge properly no matter what port you use, that's a battery or board issue worth having looked at rather than a car-charging problem — Retrofit's repair and upgrade service covers exactly this.

Retrofit's IPS V5 USB-C builds, including the Zelda Triforce edition, ship with USB-C charging already fitted, so none of this setup requires soldering or a separate mod kit — it's the same port behavior described above, out of the box.

FAQ

One last thing

The detail most people miss is that ignition-linked ports aren't a fault — they're designed to stop draining the car battery when the engine's off, which means a console left plugged in overnight in a parked car simply won't be charged by morning. Always-on accessory ports or a small power bank solve this better than any car port ever will.
